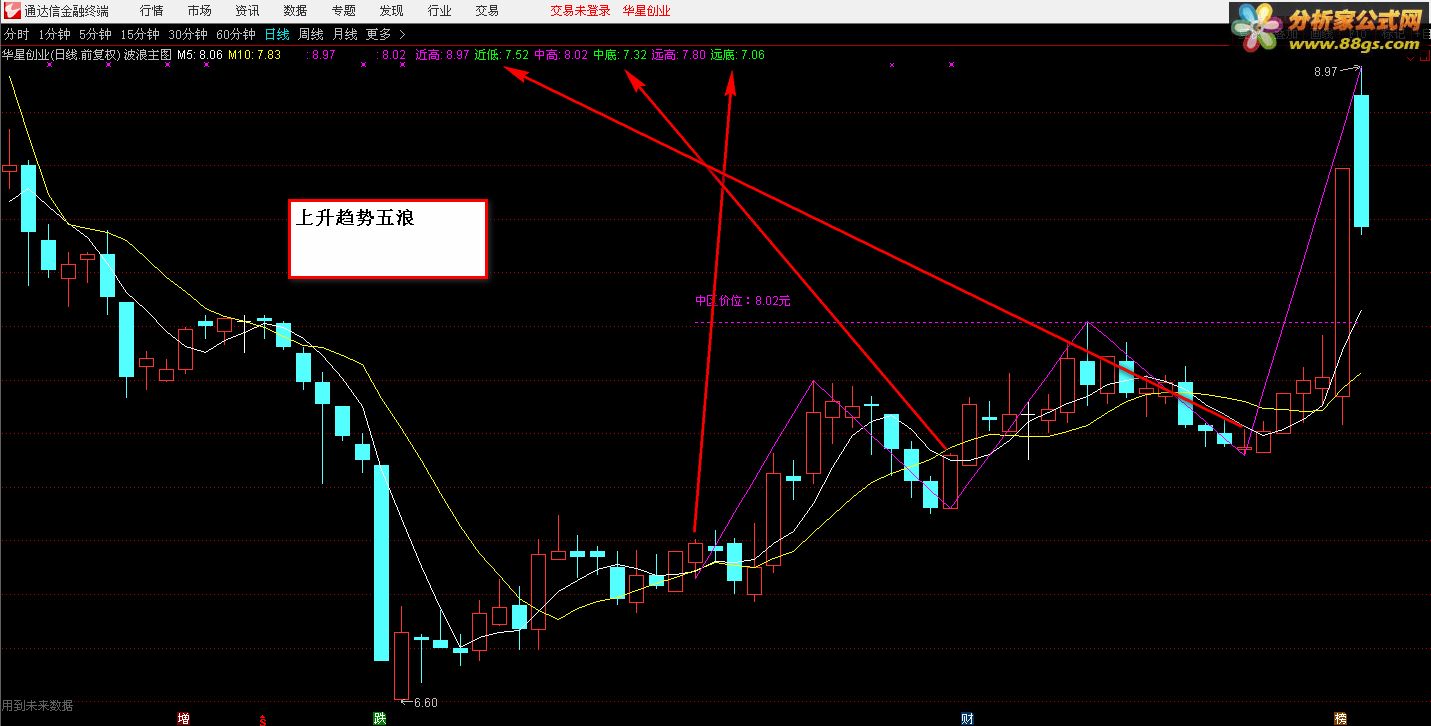

这是根据均线金叉取区间最高点均线死叉取区间最低点连线形成的五浪画线。两条均线我这里取的是5 10日线，您可以自由修改源码中的小（x）大（d）两个数字用自己熟悉 喜欢的两条均线画出不同的五浪趋势。只是大小均线不要弄反了。
画线只画最后的五浪，如果最后交易日处于金叉中定义为“上升五浪”否则定义为“下降五浪
X:=5;
D:=10;
M5:MA(C,X);
M10:MA(C,D);
T:=BARSLAST(CROSS(M5,M10));
ST:=BARSLAST(CROSS(M10,M5));
T1:=SUMBARS(T=0,2);
T2:=SUMBARS(T=0,3);
ST1:=SUMBARS(ST=0,2);
ST2:=SUMBARS(ST=0,3);
H1:=IF(CONST(M5)>CONST(M10),HHV(H,T+1),REF(HHV(H,T+1),ST));
L1:=IF(CONST(M5)<CONST(M10),LLV(L,ST+1),REF(LLV(L,ST+1),T));
H2:=IF(CONST(M5)>CONST(M10),REF(HHV(H,T+1),ST),REF(HHV(H,T+1),ST1-1));
L2:=IF(CONST(M5)<CONST(M10),REF(LLV(L,ST+1),T),REF(LLV(L,ST+1),T1-1));
H3:=IF(CONST(M5)>CONST(M10),REF(HHV(H,T+1),ST1-1),REF(HHV(H,T+1),ST2-1));
L3:=IF(CONST(M5)<CONST(M10),REF(LLV(L,ST+1),T1-1),REF(LLV(L,ST+1),T2-1));
TJ1:=CONST(M5)>CONST(M10) AND CURRBARSCOUNT>=CONST(T2) AND CURRBARSCOUNT<=CONST(ST2) AND L=CONST(L3);
TJ2:=CONST(M5)>CONST(M10) AND CURRBARSCOUNT>=CONST(ST1) AND CURRBARSCOUNT<=CONST(T2) AND H=CONST(H3);
TJ3:=CONST(M5)>CONST(M10) AND CURRBARSCOUNT>=CONST(T1) AND CURRBARSCOUNT<=CONST(ST1) AND L=CONST(L2);
TJ4:=CONST(M5)>CONST(M10) AND CURRBARSCOUNT>=CONST(ST) AND CURRBARSCOUNT<=CONST(T1) AND H=CONST(H2);
TJ5:=CONST(M5)>CONST(M10) AND CURRBARSCOUNT>=CONST(T)+1 AND CURRBARSCOUNT<=CONST(ST)+1 AND L=CONST(L1);
TJ6:=CONST(M5)>CONST(M10) AND H=CONST(H1) AND CURRBARSCOUNT<=CONST(ST2);
TJ7:=CONST(M5)<CONST(M10) AND CURRBARSCOUNT>=CONST(ST2) AND CURRBARSCOUNT<=CONST(T2) AND H=CONST(H3);
TJ8:=CONST(M5)<CONST(M10) AND CURRBARSCOUNT>=CONST(T1) AND CURRBARSCOUNT<=CONST(ST2) AND L=CONST(L3);
TJ9:=CONST(M5)<CONST(M10) AND CURRBARSCOUNT>=CONST(ST1) AND CURRBARSCOUNT<=CONST(T1) AND H=CONST(H2);
TJ10:=CONST(M5)<CONST(M10) AND CURRBARSCOUNT>=CONST(T) AND CURRBARSCOUNT<=CONST(ST1) AND L=CONST(L2);
TJ11:=CONST(M5)<CONST(M10) AND CURRBARSCOUNT>=CONST(ST)+1 AND CURRBARSCOUNT<=CONST(T)+1 AND H=CONST(H1);
TJ12:=CONST(M5)<CONST(M10) AND L=CONST(L1)AND CURRBARSCOUNT<=CONST(T2);
DRAWLINE(TJ1,L,TJ2,H,0),COLORMAGENTA;
DRAWLINE(TJ2,H,TJ3,L,0),COLORMAGENTA;
DRAWLINE(TJ3,L,TJ4,H,0),COLORMAGENTA;
DRAWLINE(TJ4,H,TJ5,L,0),COLORMAGENTA;
DRAWLINE(TJ5,L,TJ6,H,0),COLORMAGENTA;
DRAWLINE(TJ7,H,TJ8,L,0),COLORGREEN;
DRAWLINE(TJ8,L,TJ9,H,0),COLORGREEN;
DRAWLINE(TJ9,H,TJ10,L,0),COLORGREEN;
DRAWLINE(TJ10,L,TJ11,H,0),COLORGREEN;
DRAWLINE(TJ11,H,TJ12,L,0),COLORGREEN;
HH:=CONST(MAX(MAX(H1,H2),H3));
LL:=CONST(MIN(MIN(L1,L2),L3));
Z:=(HH-LL)/2+LL;
DRAWLINE(TJ7,Z,ISLASTBAR,Z,0),COLORGREEN,DOTLINE;
DRAWTEXT(TJ7,CONST(Z)*1.01,VARCAT(VARCAT('中区价位：',VAR2STR(CONST(Z),2)),'元')),COLORGREEN;
HH1:=CONST(MAX(H1,MAX(H2,H3)));
LL1:=CONST(MIN(MIN(L1,L2),L3));
Z1:=(HH1-LL1)/2+LL1;
{www.fxjgsw.com}
DRAWLINE(TJ1,Z1,ISLASTBAR,Z1,0),COLORMAGENTA,DOTLINE;
DRAWTEXT(TJ1,CONST(Z)*1.01,VARCAT(VARCAT('中区价位：',VAR2STR(CONST(Z1),2)),'元')),COLORMAGENTA;
近高:H1,COLORMAGENTA,NODRAW;
近低:L1,COLORGREEN,NODRAW;
中高:H2,COLORMAGENTA,NODRAW;
中底:L2,COLORGREEN,NODRAW;
远高:H3,COLORMAGENTA,NODRAW;
远底:L3,COLORGREEN,NODRAW;
