{分时叠加大盘线RSI}

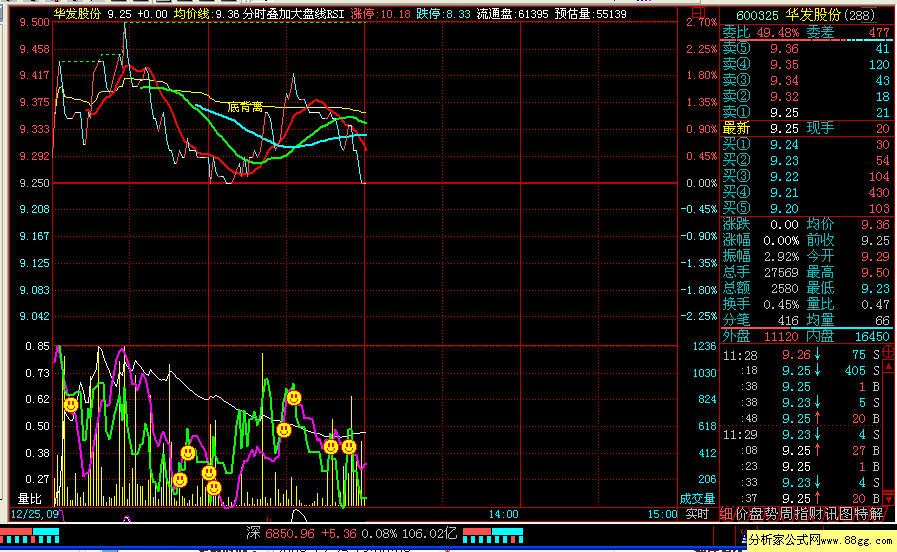

//这是分时指标,借用了别人的东西东拼西凑而成,,可以看看,副图一叠加了RSI(绿线)和大盘线(晶红色线),当RSI上穿大盘线可作为介入点,副图二叠加了MACD和趋势线(晶红色线),主图叠加了均线(晶红为13日线,青色线是34日,绿色是55日),具体用法自己体验吧,我也是刚刚完成的(如果不能显示MACD,就在分时主图上按右键,然后选择第一个"实时副图切换"就行)
//已经改动和加了信号,导入不了主要是参数没有设定好

input:n1(5,0,30),n2(5,0,30);
ma13:ma(c,13),COLORRED,linethick2;
ma34:ma(c,34),COLORGREEN,linethick2;
ma55:ma(c,55),COLORCYAN,linethick2;
DRAWICON(cross(ma13,ma55) and ma34>ref(ma34,1)    and  ma55>ref(ma55,1),ma55,1);

XG:HHV(H,480),LINEDOT,COLORGREEN;
DRAWTEXT(FILTER(CROSS(C,REF(XG,1)),10) AND C>REF(XG,1),C*0.99,'突破'),COLORYELLOW;

if datatype>=0 then exit;
////////****** 计算指标变换所需的公共数据 *******
rc:=DYNAINFO(3);//前收
q:=datacount;
hh:=DYNAINFO(5);//最高
LL:=DYNAINFO(6);//最低
f:=max(hh-rc,rc-LL);
ff:=f/rc*100;//最大半振幅
////////////////////////////////////////////////////////////////
////////******　㈠副图1叠加大盘分时线******（共3个步骤完成指标变换）
//副图1变换所需数据
q1h:=if(ff<1,0.9898*rc,rc-f*1.02);//分时副图1最高位置
q1l:=if(ff<1,0.9798*rc,rc-2*f*1.016);//分时副图1最低位置，同时也是分时副图2最高位置

//①以下计算大盘分时线的最大、最小值
R:=INDEXC;
Rh:=hhv(r,0);//最大值
RL:=LLv(r,0);//最小值
//②计算缩放比例、平移值
Rb:=(q1h-q1l)/(RH[q]-RL[q]);//缩放比例
Ry:=(q1h+q1l-rb*(RH[q]+RL[q]))/2;//平移值
//③变换原来的大盘分时到分时副图1
msd:r*rb+ry,COLORMAGENTA,LINETHICK2;//在分时副图1，显示变换后的大盘分时

/////////////////////////////////////////////////////////////////

r:=DYNAINFO(3);q:=datacount;
hh:=DYNAINFO(5);
LL:=DYNAINFO(6);
f:=max(hh-r,r-LL);
q1:=r-f*1.01;//主图下边线
q2:=r-2*f*1.0125;//副图1下边线(0位线)
q3:=r-3*f*1.014;//副图2下边线(0位线)
{有了Q1、Q2、Q3，叠加副图指标也就容易了}
//在副图1叠加RSI
r:="rsi.rsi1";
rh:=hhv(r,0);
rL:=LLv(r,0);
rb:=(q1-q2)/(rh-rL);
ry:=(q1+q2-rb*(rh+rL))/2;
rsi14:r*rb[q]+ry[q],COLORGREEN,LINETHICK2;

AAa:=REF(rsi14,N2)=HHV(rsi14,2*N2+1);
BBb:=BACKSET(AAa,N2+1);
CCc:=FILTER(BBb,N2) AND rsi14=HHV(rsi14,N2+1);
Aa1:=BARSLAST(REF(CCc,1));
顶背离:=REF(H,aA1+1)<H AND REF(rsi14,aA1+1)>rsi14 AND CCc;
DRAWLINE(CCc,rsi14,FILTER(顶背离>0,5),rsi14,0);
DRAWTEXT(顶背离,rsi14*1,'顶背离'),COLORYELLOW;

AAa2:=REF(rsi14,N2)=LLV(rsi14,2*N2+1);
BBb2:=BACKSET(AAa2,N2+1);
CCc2:=FILTER(BBb2,N2) AND rsi14=LLV(rsi14,N2+1);
Aa2:=BARSLAST(REF(CCc2,1));
底背离:=REF(L,Aa2+1)>L AND REF(rsi14,Aa2+1)<rsi14 AND CCc2;
DRAWLINE(CCc2,rsi14,FILTER(底背离>0,5),rsi14,0),COLORMAGENTA;
DRAWTEXT(底背离,rsi14,'底背离'),COLORYELLOW;

DRAWICON(cross(rsi14,msd),msd,1);

/////////////////////////////////////////////////////////////////
////////********　㈡在副图2叠加macd　********
//副图2变换所需数据
q2h:=if(ff<1,0.9797*rc,rc-2*f*1.016);//分时副图2最高位置
q2l:=if(ff<1,0.9697*rc,rc-3*f*1.011);//分时副图2最低位置

//以下清除原始的指标线，并画横坐标线
FILLRGN(1,q2h,q2l),colorblack;
cz:=(q2h-q2l)/6;
q2l,POINTDOT,,COLORWHITE;
q2l+cz,POINTDOT,color0000cc;
q2l+2*cz,POINTDOT,color0000cc;
q2l+3*cz,POINTDOT,color0000cc;
q2l+4*cz,POINTDOT,color0000cc;
q2l+5*cz,POINTDOT,color0000cc;

a1:="macd.diff";
a2:="macd.dea";
a3:="macd.macd";
mh:=hhv(max(a1,a3),0);
mL:=LLv(min(a3,a1),0);
mb:=(q2h-q2l)/(mH[q]-mL[q]);//缩放比例,选macd或diff来计算缩放比例
my:=(q2h+q2l-mb*(mH[q]+mL[q]))/2;//平移值
diff:a1*mb+my,COLORWHITE;//副图2显示原来的diff指标线
dea:a2*mb+my,COLORYELLOW;//副图2显示原来的dea指标线
macd:=a3*mb+my;//副图2显示原来的macd指标线
STICKLINE(macd>my,my,macd,1,1),COLORRED;
STICKLINE(macd<my,my,macd,1,1),COLORCYAN;

SZ:=(3*CLOSE+2*OPEN+LOW+HIGH)/7;
趋势:=EMA(3*SZ-2*SMA(SZ,2,1),10),Colorred,linethick2;

aA1:=趋势;
aA2:=趋势;
aA3:=趋势;
mhA:=hhv(max(aA1,aA3),0);
mLA:=LLv(min(aA3,aA1),0);

mbA:=(q2h-q2l)/(mHA[q]-mLA[q]);//缩放比例,选macd或diff来计算缩放比例
myA:=(q2h+q2l-mbA*(mHA[q]+mLA[q]))/2;//平移值
hhh:aA1*mbA+myA,COLORMAGENTA;//副图2显示原来的diff指标线

AA:=REF(diff,N1)=HHV(diff,2*N1+1);
BB:=BACKSET(AA,N1+1);
CC:=FILTER(BB,N1) AND diff=HHV(diff,N1+1);
A1:=BARSLAST(REF(CC,1));
顶背离:=REF(CLOSE,A1+1)<CLOSE AND REF(diff,A1+1)>diff AND CC;
DRAWICON(顶背离,diff,2);
DRAWTEXT(顶背离,diff*1.2,'顶背离'),COLORGREEN;
DRAWLINE(CC,diff,FILTER(顶背离>0,5),diff,0),COLORRED;

AA2:=REF(diff,N1)=LLV(diff,2*N1+1);
BB2:=BACKSET(AA2,N1+1);
CC2:=FILTER(BB2,N1) AND diff=LLV(diff,N1+1);
A2:=BARSLAST(REF(CC2,1));
底背离:=REF(CLOSE,A2+1)>CLOSE AND REF(diff,A2+1)<diff AND CC2;
DRAWICON(底背离,diff,1);
DRAWTEXT(底背离,diff*1.1,'底背离'),COLORYELLOW;
DRAWLINE(CC2,diff,FILTER(底背离>0,5),diff,0),COLORRED;
